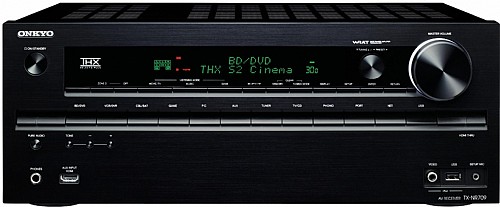

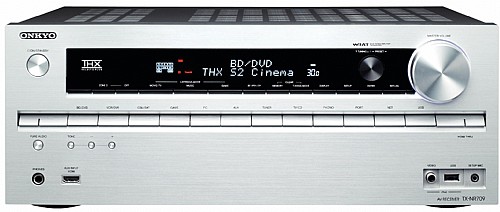

רסיבר קולנוע ביתי מבית ONKYO דגם TXNR709

ADVANCED FEATURES

* Availability of services depends on region.

AMPLIFIER FEATURES

• 170 W/Ch at 6 Ω, 1 kHz, 1%, 1 Channel Driven, IEC
• WRAT (Wide Range Amplifier Technology)
• H.C.P.S. (High Current Power Supply) Massive High-Power Transformer
• Linear Optimum Gain Volume Circuitry
• PLL (Phase Locked Loop) Jitter-Cleaning Circuit Technology for All Audio Signals

PROCESSING FEATURES

• Dolby® TrueHD and DTS-HD Master Audio™ Decoding
• TI Burr-Brown 192 kHz/24-Bit DACs (PCM1690) for All Channels
• Advanced 32-Bit Processing DSP Chip
• 4 DSP Modes for Gaming: Rock, Sports, Action, and RPG
• Advanced Music Optimizer for Compressed Digital Music Files
• Handles Playback of Mass Storage Class USB Memory
• Theater-Dimensional Virtual Surround Function
• Direct Mode and Pure Audio Mode
• Double Bass Function
• Non-Scaling Configuration
• A-Form Listening Mode Memory

CONNECTION FEATURES

• 8 HDMI® Inputs (1 Front/7 Rear) and 2 Outputs
• Universal Port for Onkyo Peripheral Devices Such as UP-A1 Dock for iPod/iPhone or UP-DT1 DAB+ Radio Tuner
• Component Video Switching (2 Inputs and 1 Output)
• 5 Composite Video Inputs (1 Front/4 Rear) and 2 Outputs
• 4 S-Video Inputs and 2 Outputs
• Analog RGB Video Input (D-sub, 15 pin) for PC
• 5 Digital Audio Inputs (2 Optical and 3 Coaxial)
• 6 Analog Audio Inputs and 1 Output
• Phono Input
• Powered Zone 2 and Zone 2 Line-Out for Distributed Audio Playback in Another Room
• Color-Coded, Banana Plug-Compatible Speaker Posts
• RS232 Port, IR Input, and 12 V Trigger Out (Zone 2)
• Headphone Jack
