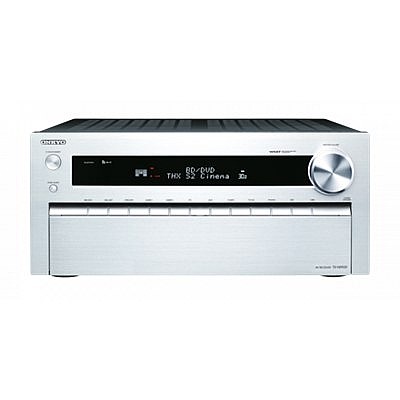

רסיבר סראונד מבית ONKYO דגם TXNR929

Amplifier Section
Power Output
All Channels 185 W/Ch (6, 1 kHz, 1% THD, 1 Channel Driven, IEC) 230 W/Ch (6, 1 kHz, 1 Channel Driven, JEITA)
Dynamic Power 300 W (3, Front) 250 W (4 , Front) 150 W (8, Front)
THD+N (Total Harmonic Distortion + Noise)
0.08% (20 Hz–20 kHz, Rated Power)
Damping Factor 60 (Front, 1 kHz, 8)
Input Sensitivity and Impedance
200 mV/47 k (Line)
2.5 mV/47 k (Phono MM)
Rated RCA Output Level and Impedance
200 mV/470 (Line Out)
Maximum RCA Output Level and Impedance
4.6 V/470 (Line Out)
Phono Overload 70 mV (MM, 1 kHz, 0.5%)
Frequency Response 5 Hz–100 kHz/+1 dB, -3 dB (Direct Mode)
Tone Control
10 dB, 50 Hz (Bass)
10 dB, 20 kHz (Treble)
Signal-to-Noise Ratio 110 dB (Line, IHF-A)
80 dB (Phono MM, IHF-A)
Speaker Impedance 4 – 16 or 6 – 16
Video Section
Input Sensitivity/Output Level and Impedance

Video
1.0 Vp–p/75 (Component Y)
0.7 Vp–p/75 (Component PB/CB, PR/CR)
1.0 Vp–p/75 (Composite)
Component Video Frequency Response
5 Hz–100 MHz/+0 dB, -3 dB

Tuner Section
Tuning Frequency Range
FM 87.5 MHz–108 MHz
AM 522 kHz–1,611 kHz
530 kHz–1,710 kHz
FM/AM Preset Memory 40 Stations

General
Power Supply AC 220−240 V~, 50/60 Hz
Power Consumption 870 W
No-Sound Power Consumption
120 W
Standby Power Consumption
0.15 W
Dimensions (W x H x D) 435 x 198.5 x 437.5 mm
260.3 mm with antennas raised)
Weight 18.5 kg
CARTON
Dimensions (W x H x D) 587 x 337 x 553 mm
Weight 22.0 kg
Supplied Accessories
Indoor FM antenna
Antenna isolator*
AM loop antenna
Speaker cable labels
Speaker set-up microphone
Instruction manual
Quick start guide
Remote controller
AA (R6) batteries** x 2
