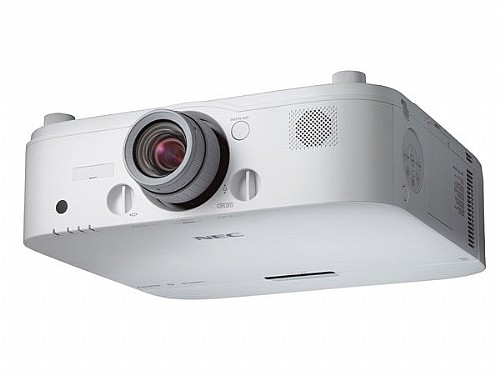

מקרן מבית NEC דגם PA522U

Projection Technology     3 x 1.93 cm (0.76") LCD Panel with MLA
Native Resolution     1920 x 1200 (WUXGA)
Contrast Ratio 1     5000:1
Brightness 1     5200 ANSI Lumen (approx. 80% in Eco Mode), with std. optional lense
Lamp     330 W UHP AC (264 W UHP AC Eco Mode)
Lamp Life [hrs]     3000 (4000 Eco Mode, 2000 Portrait Mode)
Lens     6 optional bayonet lenses
Projection Factor     depending on lens selection (std. option NP13ZL at 1.5-3.02:1)
Projection Distance [m]     0.7 (NP11FL) - 76.4 (NP15ZL)
Screen Size (diagonal) [cm] / [inch]     Maximum: 1,270 / 500"; Minimum: 76 / 30"
Zoom     Manual (x2 with optional lens NP13ZL)
Focus Adjustment     Manual
Supported Resolutions     4096 x 2160 (4k); 2560 x 1600 (WQXGA); 2048 x 1080 (2k); 1920x1200 (WUXGA) - 640x480 (VGA); 1080i/50/60; 1080p/24/25/30/50/60; 720p/60; 720p/50; 576i/50; 576p/50; 480p/60; 480i/50
Frequency     Horizontal: analog: 15/24-100 kHz, digital: 15/24-153 kHz; Vertical: analog: 48-120 Hz, digital: 24-120 Hz

CONNECTIVITY
RGB (analog)     Input: 1 x 5BNC, shared with Component Signal (YPbPr); 1 x Mini D-sub 15-pin, compatible to component (YPbPr)
Digital     Input: 1 x DisplayPort; 1 x HDBaseT; 2 x HDMI™ supporting HDCP
Output: 1 x HDMI
Video     Input: 1 x BNC R Share
S-Video     Input: 1 x BNC G/B Share
Audio     Input: 1 x DisplayPort Audio support; 1 x HDBaseT audio support; 2 x 3.5 mm Stereo Mini Jack for Computer analog; 2 x HDMI audio support
Output: 1 x 3.5 mm Stereo Mini Jack (variable)
Control     Input: 1 x D-Sub 9 pin (RS-232), Ethernet
USB     1 x Type A (USB 2.0 high speed)
3D Sync     Output: 1 x Mini DIN 3pin
Video Signals     NTSC; NTSC 4.43; PAL; PAL-M; PAL-N; PAL60; SECAM

REMOTE CONTROL
Input:     1 x 3.5 mm Stereo Mini Jack
Remote Control     3D Setup; Aspect Ratio; Audio Control; Auto Adjust; DisplayPort; Eco Mode Control; Edge-Blending; Freeze-function; Geometric Correction; HDMI; Help-function; Magnify-function; Multiscreen; Page (up, down); PBP/POP Function; Picture Adjust; Picture Mute; PIP Function; Power (On-OFF); Select (up, down, left, right); Source Select; Test Picture

ELECTRICAL
Power Supply     100-240 V AC; 50 - 60 Hz
Power Consumption [W]     460 (Normal) / 362 (Eco) / 7.9 (HDBaseT Stand-by) / 0.16 (Stand-by); Sleep Mode (Lamp off): 16

MECHANICAL
Dimensions (W x H x D) [mm]     499 x 142 x 359 (without lens and feet)
Weight [kg]     8.4
Fan Noise [dB (A)]     33 / 39 (Eco / Normal)

ERGONOMICS
Safety and Ergonomics     CE; ErP; RoHS; TÜV GS
Speakers [W]     1 x 10 (mono)

ADDITIONAL FEATURES
Special Characteristics     4K Interface; AMX Beacon; Built-in Display/Multiscreen Splitter; Cinema Quality Picture (CQP) Processing for best image quality; Crestron RoomView; DICOM Simulation; Digital 3D Reform™; Direct Power-Off Function; Edge Blending Function (Build In); Free Tilt; Full 3D HDMI Support; Geometric Correction; HDBaseT; Keystone Correction (H=±40°, V=±40°); LAN; Lens Shift (vertical +0.5 max/-0.1 max, horizontal ± 0.3 max.); Manual Wall Color Correction; Multi-Screen compensation mode; NaViSet Administrator 2; Optional User Logo; OSD with 27 languages; Password Security System; PIP/Side by Side, HDMI - Input; PJ LINK; Portrait Setting; RS-232 Control; Stacking Function; Timer-Function; Virtual Remote for direct PC control

GREEN FEATURES
Energy Efficiency     Intelligent Power Management; Less than 0.16W Stand-By power
Ecological Materials     100% recyclable packaging; Downloadable manuals; Unique NEC NeCycle Bio-Plastic cable cover option
Ecological Standards     ErP compliant

WARRANTY
Projectors     3 years pan-European service
Lamp     6 months, max. 1000 hrs

SHIPPING CONTENT
Shipping Contents     IR Remote Control (RD - 466E); Network Set-up Guide; Power Cord; Projector; Quick Setup Guide; Users Manual on CD-ROM

OPTIONAL ACCESSORIES
Optional Accessories     Cable Cover (NP04CV); Lamp (NP26LP); WiDi Receiver (NP01WR)
Lenses     NP11FL (0.8:1); NP12ZL (1.19-1.56:1); NP13ZL (1.5-3.02:1); NP14ZL (2.97-4.79:1); NP15ZL (4.7-7.2:1); NP30ZL (0.79-1.03:1)
