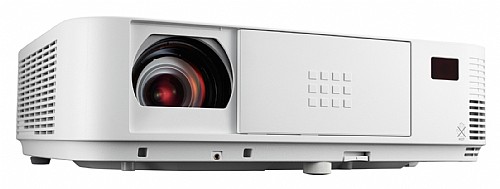

מקרן מבית NEC דגם M402H

Optical
Display Technology     DLP (0.65" DMD)
Light Output(Lumens)     4000 normal
Resolution
Native     1080p 1920 x 1080
Maximum     WUXGA 1920 x 1200

Contrast Ratio (up to)     10,000:1 with auto iris
Lamp Type     270W AC
Lamp Life (up to)     3500 hours normal / 8000 hours eco
Screen Size (diagonal)     30 to 300 in. / 0.76 to 7.6m
Throw Ratio     1.3 to 2.2
Projection Distance     2.4 to 46.3 ft. / 0.74 to 14.1m
Projector Angle     9.9 to 10.5° tele / 16.9 to 18.3° wide
Lens
Zoom     1 to 2.01
Focus     Manual
F number, fnumber     F=2.4 to 3.2, f=18.0 to 30.6mm

Keystone Correction     +/- 25° horizontal, +/- 30° vertical

Signal Compatibility/Connectivity
Scan Rate
Horizontal     15-100 kHz
Vertical     15-120 kHz

Supported Video Standards     NTSC, NTSC4.43, PAL, PAL-60, PAL-M, PAL-N, SECAM
SD/HD Video Signal Compatibility     480i, 480p, 576i, 576p, 720p, 1080i, 1080p
PC Signal Compatibility     VGA, SVGA, XGA, SXGA, SXGA+, UXGA, WUXGA
Macintosh Compatibility     Yes

Input/Output Terminals
RGB1(analog)     VGA 15-pin D-sub
RGB3(digital)     HDMI w/HDCP
RGB4(digital)     USB A type
Video 1     RCA
Audio 1     L/R RCA (shared by video sources)
Audio 2     1/8 in. stereo
Monitor out     VGA 15-pin D-sub
Audio out     Yes (variable)

Audio      20W mono
External Control     RS-232, IR, Wired LAN, DDC/CI, USB, Wireless LAN (optional)
Sync Compatiblity     Separate Sync / Composite Sync / Sync on G

Electrical
Power Requirements     100-240V AC, 50/60 Hz
Input Current     3.9A
Power Consumption (Normal/ECO Mode/Standby/Standby Power Saving)     354W / 258W / 2.5W / 0.2W

Mechanical
Installation Orientation     Floor/Front, Floor/Rear, Ceiling/Front, Ceiling/Rear
Dimensions (WxDxH)     14.5 x 11.5 x 4.3 in. / 368 x 291 x 108mm
Net Weight     8.4 lbs. / 3.8 kg
Fan Noise     39 dB normal / 33 dB eco
Regulations     USA UL 1950 FCC Class B, Canada CSA 950 (C-UL), NOM

Environmental
Operating Temperature     41-104°F / 5-40°C
Humidity     20-80% non-condensing
Storage     -14-122°F / -10-50°C

Limited Warranty
3 years.  Lamp warranty is 1 year or 500 hours, whichever comes first.

Additional Features
Automatic keystone correction
Wireless LAN (Optional)
Active Lens Cover
USB Viewer
Cornerstone - available using geometric correction software
Geometric Correction
6000 hour Filter Life
Auto power on
ECO Mode technology
Closed captioning
Variable audio out
Carbon savings meter
Virtual Remote
Sleep timer
Quick power-off
Built-in wall color correction
Advanced AccuBlend
AutoSense
Wireless Image Utility

Ships With
Remote control
Batteries
Power cord
RGB signal cable
Built-in Lens cover
User manual
Quick Start Guide
Product registration card
CD-ROM
Carrying case
