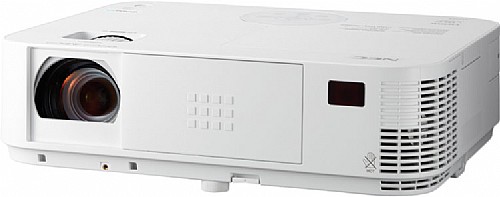

מקרן מבית NEC דגם M362W

Projection Technology     1 x 1.65 cm (0.65") 2x LVDS DMD Chip
Native Resolution     1280 x 800 (WXGA)
Aspect Ratio     16:10
Contrast Ratio 1     10000:1
Brightness 1     3600 ANSI Lumen (approx. 75% in Eco Mode)
Lamp     250 W AC (150 W AC Eco Mode)
Lamp Life [hrs]     8000 Eco / 5500 Normal / 3500 High Bright Mode
Lens     F= 2.4–3.1, f= 17.09–29.05 mm
Keystone correction     +/- 25° manual horizontal / +/- 30° automatic / manual vertical
Projection Angle [°]     10.5 - 17.6
Projection Factor     1.2 – 2.04 : 1
Projection Distance [m]     0.76 – 13.53
Screen Size (diagonal) [cm] / [inch]     76.2 / 30" - 762 / 300"
Zoom     Manual
Focus Adjustment     Manual
Supported Resolutions     1920 x 1080 (HDTV 1080i/60; HDTV 1080i/50); 1680 x 1050 (WSXGA+); 1600 x 1200 (UXGA); 1600 x 900 (WXGA++); 1440 x 900 (WXGA+); 1400 x 1050 (SXGA+); 1366 x 768 (WXGA); 1360 x 768 (WXGA); 1280 x 1024 (Maximum resolution of digital input); 1280 x 1024 (SXGA); 1280 x 1024 (MAC 23"); 1280 x 960 (SXGA); 1280 x 800 (WXGA); 1280 x 768 (WXGA); 1280 x 720 (HDTV 720p); 1152 x 870 (MAC 21"); 1152 x 864 (XGA); 1024 x 768 (XGA); 832 x 624 (MAC 16"); 800 x 600 (SVGA); 720 x 576 SDTV 480p/480i; 720 x 576 (DVD progressive); 720 x 480 SDTV 576p/576i; 720 x 480 (SDTV 480p); 640 x 480 (VGA/MAC 13")
Frequency     Horizontal: 15–100 kHz (RGB: 24 kHz– 100 kHz); Vertical: 50 – 120 Hz

CONNECTIVITY
RGB (analog)     Input: 1 x Mini D-sub 15-pin, compatible to component (YPbPr)
Output: 1 x Mini D-sub 15 pin
HDMI™     Input: 2 x HDMI™ (Deep Color, Lip sync)
Video     Input: 1 x RCA
Audio     Input: 1 x 3.5 mm Stereo Mini Jack; 1 x RCA Stereo
Output: 1 x 3.5 mm Stereo Mini Jack (variable)
Microphone     Input: 1 x 3.5 mm Monaural Mini Jack (Dynamic mic / Condenser mic)
Control     Input: 1 x D-Sub 9 pin (RS-232) (male)
LAN     1 x RJ45; Optional WLAN
USB     1 x Type A (USB 2.0 high speed); 1 x Type B
3D Sync     Output: 1 x Mini DIN 3pin
Video Signals     NTSC; NTSC 4.43; PAL; PAL-M; PAL60; SECAM

REMOTE CONTROL
Remote Control     Aspect Ratio; Audio Control; Auto Adjust; Automatic Picture Adjustment; AV Mute; Digital Zoom; Freeze; Help Eco Mode; ID set; Keystone Correction; Lamp Mode Control; Magnify-function; Optional Presentation and Mouse Control; Picture Adjust; Source Select

ELECTRICAL
Power Supply     100-240 V AC; 50 - 60 Hz
Power Consumption [W]     244 (Normal) / 224 (Eco) / 2.9 (Network Stand-by) / 0.4 (Stand-by); 315 (High Bright)

MECHANICAL
Dimensions (W x H x D) [mm]     367.9 x 97.5 x 285.9 (without lens and feet)
Weight [kg]     3.6
Fan Noise [dB (A)]     33 / 33 / 37 (ECO / Normal / High Bright)

ENVIRONMENTAL CONDITIONS
Operating Temperature [°C]     5 to 40
Operating Humidity [%]     20 to 80
Storage Temperature [°C]     -10 to 50
Storage Humidity [%]     20 to 80

ERGONOMICS
Safety and Ergonomics     CE; EAC; Gost-R; RoHS; TÜV GS
Speakers [W]     1 x 20 (mono)

ADDITIONAL FEATURES
Special Characteristics     Ambient Light Sensor; Auto Eco Mode; Auto Power-ON Function; Carbon Savings Meter; Colour Management; Constant Brightness Mode; Content Transmission via Network; Crestron RoomView; DICOM Simulation; Full 3D DLP® LINK support; High Altitude Mode; Kensington security slot; Keypad Lock; Magnify; NaViSet Administrator 2; Off-Timer; Optional User Logo; Optional WLAN; OSD with 29 languages; Password Security System; Quick Start; Remote control and administration via LAN and RS232; Security Bar; Simple Access Point; USB Viewer for JPEG; Virtual Remote for direct PC control; Wall Colour Correction

GREEN FEATURES
Energy Efficiency     75 % AV mute function; Auto ECO Mode; ECO scheduler; Green one touch ECO and AV mute button; ImageCare® Technology; Intelligent Power Management; Longer lamp life; Reduced power consumption. Only 0.4W stand-by; Software scheduling
Ecological Materials     100% recyclable packaging; Downloadable manuals; ECO packaging
Ecological Standards     ErP compliant; RoHs compliant; WEEE

WARRANTY
Projectors     3 years pan-European service
Lamp     6 months, max. 1000 hrs

SHIPPING CONTENT
Shipping Contents     IR Remote Control (RD-469E); Mini D-SUB Signal Cable; Power Cord (1.8 m); Quick Setup Guide; Security Sticker; Soft Case; Users Manual on CD-ROM

OPTIONAL ACCESSORIES
Optional Accessories     3D Starter Kit (NP02SK3D); Cable Cover (NP05CV); DisplayNote; DLP-Link 3D Glasses (NP02GL, VolfoniFit); Lamp (NP29LP); Universal Ceiling Mounts (NP01, 02/03/04/05UCM); Wireless LAN module (NP02LM2 for EU, NP02LM3 for Russia)
