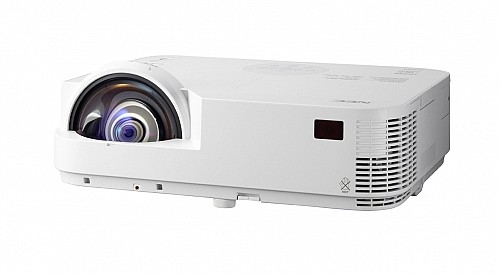

מקרן מבית NEC דגם M332XS

Optical
Display Technology     DLP (0.55" DMD)
Light Output(Lumens)     3300 normal / Eco = approx. 75% of normal mode
Resolution
Native     XGA 1024 x 768
Maximum     WUXGA 1920 x 1200

Contrast Ratio (up to)     10,000:1
Lamp Type     200W AC
Lamp Life (up to)     3500 hours normal / 8000 hours eco
Screen Size (diagonal)     60 to 150 in. / 1.5 to 3.1m
Throw Ratio     0.48 to 1
Projection Distance     2.21 to 5.76 ft. / 0.67 to 1.757m
Projector Angle     40.7° to 40.9°
Lens
Zoom     1.2
Focus     Manual
F number, fnumber     F=2.4, f=6.5mm

Keystone Correction     +/- 30% Vertical (Automatic/Manual)

Signal Compatibility/Connectivity
Scan Rate
Horizontal     15-100 kHz
Vertical     50-120 Hz

Supported Video Standards     NTSC, NTSC4.43, PAL, PAL-60, PAL-M, PAL-N, SECAM
SD/HD Video Signal Compatibility     480i, 480p, 576i, 576p, 720p, 1080i, 1080p, Y/Cb/Cr component (with optional adapter – ADP-CV1E)
PC Signal Compatibility     VGA, SVGA, XGA, SXGA, SXGA+, UXGA, WUXGA
Macintosh Compatibility     Yes
Input/Output Terminals
RGB1(analog)     VGA 15-pin D-sub
RGB3(digital)     HDMI w/ HDCP
RGB5(digital)     USB A type
Video 1     RCA
Audio 1     L/R RCA (shared by video sources)
Audio 2     1/8 in. stereo
Audio 3     Microphone
Monitor out     VGA 15-pin D-sub
Audio out     Yes (variable)

Audio      20W speaker
External Control     RS-232, IR, Wired LAN, DDC/CI, USB, Wireless LAN (optional)
Sync Compatiblity     Separate Sync / Composite Sync / Sync on G

Electrical
Power Requirements     100-240V AC, 50/60 Hz
Input Current     3.9A/1.9A
Power Consumption (Normal/ECO Mode/Standby/Standby Power Saving)     335W / 246W / 2.5W / 0.2W

Mechanical
Installation Orientation     Floor/Front, Floor/Rear, Ceiling/Front, Ceiling/Rear
Dimensions (WxDxH)     14.5 x 11.5 x 5.3 in. / 368 x 286 x 134mm
Net Weight     tbd
Fan Noise     38 dB normal / 33 dB eco
Regulations     UL60950-1, CSA60950-1, FCC Part 15 Class B, ICES-03 Class B

Environmental
Operating Temperature     41-104°F / 5-40°C
Humidity     20-80% non-condensing
Storage     -14-122°F / -10-50°C

Limited Warranty
2 years. First year Instacare Service. Lamp warranty is 1 year or 500 hours, whichever comes first.

Additional Features
Automatic keystone correction
Auto power on
ECO Mode technology
Closed captioning
Variable audio out
Carbon savings meter
Virtual Remote
Sleep timer
Built-in wall color correction
Advanced AccuBlend
AutoSense
Kensington lock slot
Image magnification
Discreet source keys

Ships With
Remote control
Batteries
Power cord
RGB signal cable
Lens cap
User manual
Quick Start Guide
Product registration card
Security Sticker
