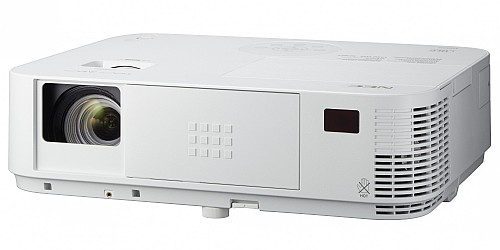

מקרן מבית NEC דגם M322X

Optical
Display Technology     DLP (0.55" DMD)
Light Output(Lumens)     3200 normal
Resolution
Native     XGA 1024 x 768
Maximum     WUXGA 1920 x 1200

Contrast Ratio (up to)     10,000:1
Lamp Type     282W AC / 202W eco
Lamp Life (up to)     3500 hours normal / 8000 hours eco
Screen Size (diagonal)     30 to 300 in. / 0.76 to 7.6m
Throw Ratio     TBD
Projection Distance     3.0 to 52.4 ft. / 0.9 to 15.97m
Projector Angle     10.5° to 17.6°
Lens
Zoom     1.7
Focus     Manual
F number, fnumber     F=2.4 to 3.1, f=17.09 to 29.05mm

Keystone Correction     +/- 30% Horizontal & Vertical (Automatic/Manual)

Signal Compatibility/Connectivity
Scan Rate
Horizontal     15-100 kHz
Vertical     50-120 Hz

Supported Video Standards     NTSC, NTSC 4.43, PAL, PAL-60, PAL-M, PAL-N, SECAM
SD/HD Video Signal Compatibility     Y/CB/Cr component (with optional adaptor ADP-CV1E) 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
PC Signal Compatibility     VGA, SVGA, XGA, SXGA, SXGA+, UXGA, WUXGA
Macintosh Compatibility     Yes
Input/Output Terminals
RGB1(analog)     VGA 15-pin D-sub
RGB3(digital)     HDMI w/ HDCP
RGB4(digital)     HDMI w/ HDCP
RGB5(digital)     USB A type
Video 1     RCA
Audio 1     L/R RCA (shared by video sources)
Audio 2     1/8 in. stereo
Audio 3     Microphone
Monitor out     VGA 15-pin D-sub
Audio out     Yes

Audio      20W speaker
External Control     RS-232, IR, Wired LAN, DDC/CI, USB, Wireless LAN (optional)
Sync Compatiblity     Separate Sync / Composite Sync / Sync on G

Electrical
Power Requirements     100-240V AC, 50/60 Hz
Input Current     3.3A/1.8A
Power Consumption (Normal/ECO Mode/Standby/Standby Power Saving)     282W / 202W / 2.5W / 0.2W

Mechanical
Installation Orientation     Floor/Front, Floor/Rear, Ceiling/Front, Ceiling/Rear
Dimensions (WxDxH)     14.5 x 11.5 x 4.3 in. / 368 x 292 x 108mm
Net Weight     7.7 lbs. / 3.49 kg
Fan Noise     38 dB normal / 31 dB eco
Regulations     UL60950-1, CSA60950-1, FCC Part 15 Class B, ICES-03 Class B

Environmental
Operating Temperature     41-104°F / 5-40°C
Humidity     20-80% non-condensing
Storage     -14-122°F / -10-50°C

Additional Features
Automatic keystone correction
Wireless LAN (Optional)
Active Lens Cover
USB Viewer
Cornerstone - available using geometric correction software
Geometric Correction
Auto power on
ECO Mode technology
Closed captioning
Variable audio out
Carbon savings meter
Virtual Remote
Sleep timer
Built-in wall color correction
Advanced AccuBlend
AutoSense

Wireless Image Utility

Ships With
Remote control
Batteries
Power cord
RGB signal cable
Built-in Lens cover
User manual
Quick Start Guide
Product registration card
CD-ROM
Carrying case
