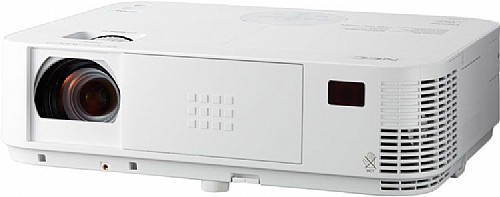

מקרן מבית NEC דגם M322W

Overview
In the Box
Reviews
Accessories
Q&A

Display
Display System     1-Chip 0.65" / 16.51 mm DMD DLP
Native Resolution     WXGA - 1280 x 800
Supported Resolutions     VGA - 640 x 480
SVGA - 800 x 600
SXGA - 1280 x 1024
SXGA+ - 1400 x 1050
UXGA - 1600 x 1200
WUXGA - 1920 x 1200
Format     NTSC 4.43
PAL 60, M, N
SECAM
HDTV Compatibility     1080p
1080i
720p
576p
576i
480p
480i
Pixels     1,024,000
Brightness     3200 Lumens
Projection Angle     10.5 - 17.6°
Aspect Ratio     Native: 16:10
Contrast Ratio     10000:1
3D     Yes
Color Range     1.07 Billion
Scan     Horizontal: 15 - 100 kHz
Vertical: 50 - 120 Hz

Lens
Focus     Manual
Lens     F 2.4 - 3.1 (f = 17.09 - 29.05 mm)
Zoom     1.7x
Throw Distance     2.5 - 44.4' (0.8 - 13.5 m)
Throw Ratio     1.2 - 2:1
Projection Size     30 - 300" / 762.00 - 7620.00 mm

Features
Keystone Correction     Auto: Yes, Horizontal: ± 30°
Auto: Yes, Vertical: ± 30°
Picture-in-Picture     None
Ceiling Mountable     Yes
Rear Screen Projection     Yes
Projection Tilt Option     Yes
Built-in Speaker     Yes, 20W (Mono)

Input/Output Connectors
Inputs/Outputs
1x 15-pin VGA Video (Input)
1x 1/8" (3.5 mm) Mini Audio (Input)
2x HDMI Audio/Video (Input)
1x USB Type-B Female
1x 15-pin VGA Video (Output)
1x 1/8" (3.5 mm) Mini Audio (Output)
1x RCA Composite Video (Input)
1x RCA Stereo (L/R) Audio (Input)
1x 1/8" (3.5 mm) Mini Microphone (Input)
1x Ethernet LAN
1x USB Type-A Female
1x VESA 3D Sync Video
1x RS-232C Control
1x IR Remote

Wireless LAN     None
Sync Compatibility     Composite Sync
Separate Sync
Sync on Green

General
Watts     Normal Mode: 282W
Eco Mode: 202W
Life     Normal Mode: 3500 Hours
Eco Mode: 8000 Hours
Fan Noise     Normal Mode: 38 dB
Eco Mode: 31 dB
Remote Control     Yes
Security     Cable Lock Slot
Power Requirements     100-240 VAC, 50/60 Hz
Input Current     3.3 A / 1.8 A
Power Consumption     Normal Mode: 282W
Eco Mode: 202W
Standby Mode: 2.5W
Power Saving Mode: .2W
Altitude     0 - 7874' (0 - 2399 m)
Temperature     Operating
41 to 104°F (5 to 40°C)
Humidity: 20 - 80%
Storage
-14 to 122°F (-25 to 50°C)
Humidity: 20 - 80%
Dimensions (WxHxD)     13.4 x 3.5 x 10.1" / 340.4 x 88.9 x 256.5 mm
Weight     7.7 lb / 3.49 kg
