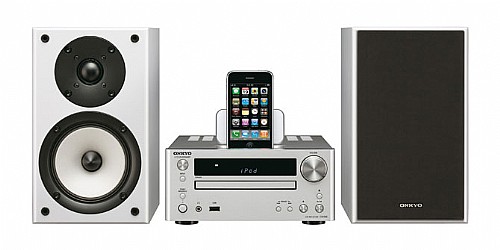

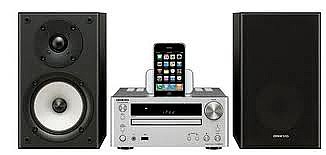

מערכת מיקרו מבית ONKYO דגם CS545

General
Power Supply: AC 220 - 230 V, 50/60 Hz
Power Consumption: 36 W
Stand-by Power Consumption: 0.5 W (iPod not charging)

Dimensions
(W × H × D):
215 × 98 × 334 mm
(8-7/16" × 3-7/8" × 13-1/8")
Weight: 4.2 kg (9.3 lbs.)
Audio Inputs
Analog Inputs: 1 (LINE IN)
Audio Outputs
Subwoofer Pre Output: 1
Speaker Outputs: 2
Phones: 1
Video Output: 1 (Composite)

Amplifier Section
Power Output: 2ch × 40 W (4 , 1 kHz, 10%, 2ch driven)
THD (Total Harmonic Distortion): 10% (Power Rated) / 0.05% (1 kHz, 1 W)
Damping Factor: 40 (Front, 1 kHz, 4)
Frequency Response: 20 Hz–20 kHz / +0 -3 dB (LINE IN)
Tone Control: 10 dB, 80 Hz (BASS)
10 dB, 10 kHz (TREBLE)
+7.5 dB, 80 Hz (S.BASS)
Signal to Noise Ratio: 70 dB (LINE, IHF-A)
Speaker Impedance: 4–16

Tuner Section
FM
Tuning Frequency Range: 87.50 MHz–108.00 MHz
AM (CR-545 only)
Tuning Frequency Range: 522 kHz–1611 kHz
DAB (CR-545UKD only)
Tuning Frequency Range: 174.928 MHz–239.200 MHz

CD
Frequency Response: 20 Hz–20 kHz
Audio Dynamic Range: 80 dB
THD (Total Harmonic Distortion): 0.05%
Wow and Flutter: Below threshold of measurability
