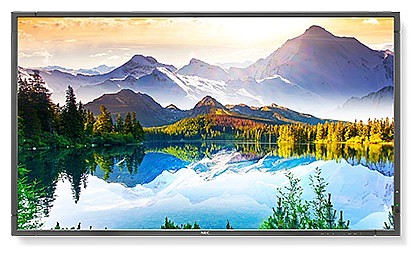

מוניטור 90" LED מבית NEC דגם E905

Display
Panel Technology     UV²A
Viewable Image Size     90"
Native Resolution     1920 x 1080
Pixel Pitch     1.04mm
Backlight Type     LED Direct-lit
Pixels Per Inch     24.48
Brightness (typical)     280cd/m2
Brightness (maximum)     350cd/m2
Contrast Ratio (typical)     5000:1
Viewing Angle     176° Vert., 176° Hor. (88U/88D/88L/88R) @ CR>10
Response Time(Gray to Gray)     4ms
Refresh Rate     60Hz
Aspect Ratio     16:9
Active Screen Area     78.5 x 44.1 in. / 1993.0 x 1121.0 mm
Orientation     Landscape
Displayable Colors     More than 1 billion

Synchronization Range
Horizontal (Analog/Digital)     15.625 / 15.734 / 26.973 / 28.125 / 31.5-91.1 kHz
Vertical     24/25/30/50 - 85.0Hz

Input Signal
Video     Analog RGB 0.7 Vp-p/75 Ohms Digital TMDS / DisplayPort
Sync      Separate sync: TTL Level (Positive/Negative)
Composite sync: TTL Level (Positive/Negative)
Composite sync on green: (0.3Vp-p negative 0.7Vp-p positive)

Connectivity
PC Signal Compatibility     Yes
Macintosh Compatibility     Yes
Input Terminals
Digital     DisplayPort, HDMI (2), DVI
Analog     VGA 15-pin D-sub
Audio     Audio Mini-Jack x 2
External Control     Ethernet (RJ45), RS-232C

Output Terminals
Audio     Audio Mini-Jack, External Speaker Jack (2)

Power Consumption (typical)
On     270W
ECO Mode Standby     <2.5W

Power Consumption
Input Current     4.8A @ 100-120V; 2.0A @ 220-240V

Physical Specifications
Bezel Width (Left/Right, Top/Bottom)     1.2/1.2, 1.2/1.2 in. / 29.7/29.7, 29.7/29.7mm
Dimensions (WxHxD)
Net (with stand)     81.0 x 48.2 x 23.9 in. / 2058.4 x 1223.6 x 606.0mm
Net (without stand)     81.0 x 46.7 x 4.9 in. / 2058.4 x 1186.4 x 123.2mm
Shipping     93.1 x 59.1 x 17.7 in. / 2366.0 x 1502.0 x 450.0mm

Weight
Net (with stand)     188.7lbs. / 85.6 kg
Net (without stand)     178.6lbs. / 81.0kg
Shipping     225.8lbs / 102.4kg

VESA Hole Configuration Specifications
400 x 400mm

Environmental Conditions
Operating Temperature     32-104°F / 0-40°C
Operating Humidity     20-80%
Operating Altitude     9843ft. / 3000m
Storage Temperature     -4-140°F / -20-60°C
Storage Humidity     10-90%
Storage Altitude     40,000 ft. / 12,192m

Additional Features
Integrated Temperature Sensors
Thermodynamic Cooling Fans
Ethernet control and communication
RS-232Control and communication
AMX Beacon Compatible, Crestron Connected Compatible
Full 24/7 Scheduler
Custom Input Detect Options

Auto Power On Integrated 10W Speakers Full Steel Chassis Plug and Play DDC2B Full Scheduler Function SB-03TM digital tuner module integrated into the OPS Slot

Ships With
Power cord
1.8m DVI-D cable
Wireless remote control
Batteries
CD-ROM (user manual)
Option board slot cover
Screws
Thumbscrews

SB-03TM digital tuner module integrated into the OPS slot

Accessories
Optional
NEC
Table Top Stand (ST-801)
Optional Side-Mounted 15W Speakers (SP-TF1)
Optional Rear-Mounted 15W Speakers (SP-RM1)
Optional Tilt Wall mount (WMK-6598)
