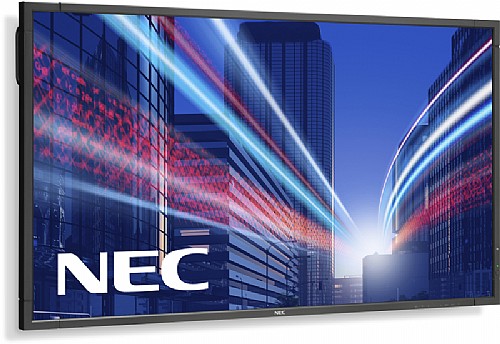

מוניטור 80" LED מבית NEC דגם P801

DISPLAY
Panel Technology     UV² A with Edge LED backlight
Active Screen Area (W x H) [mm]     1,771.2 x 996.3
Screen Size [inch/cm]     80 / 203
Brightness [cd/m²]     700, 180 Eco (shipment setting)
Contrast Ratio (typ.)     5000:1
Viewing Angle [°]     178 horizontal / 178 vertical (typ. at contrast ratio 10:1)
Response Time (typ.) [ms]     4 (grey-to-grey)
Haze Level [%]     5
Supported Orientation     Landscape; Portrait

SYNCHRONISATION RATE
Horizontal Frequency [kHz]     31.5 - 91.1 (analog and digital)
Vertical Frequency [Hz]     50 - 85

RESOLUTION
Native Resolution     1920 x 1080 at 60 Hz
Supported on DisplayPort and HDMI     3840 x 2160 (24/30 Hz); 1920 x 1080; 1600 x 1200; 1360 x 768; 1280 x 1024; 1280 x 768; 1080i; 1080p; 1024 x 768; 800 x 600; 720p (50/60 Hz); 640 x 480; 576p (50 Hz); 480p (60 Hz)
Supported on HDMI only     4096 x 2160 (24 Hz); 3840 x 2160 (25 Hz); 1360 x 768; 576i (50 Hz); 480i (60 Hz)

CONNECTIVITY
Input Video Analogue     1 x D-sub 15 pin
Input Video Digital     1 x DisplayPort (with HDCP); 1 x DVI-D (with HDCP); 1 x HDMI (with HDCP)
Input Audio Analogue     2 x 3,5 mm jack
Input Audio Digital     1 x HDMI; DisplayPort
Input Control     LAN 100Mbit; remote control wire (3,5mm jack); RS232
Output Video Digital     1 x DisplayPort out (loop through:DisplayPort, DVI-D, HDMI, Interface Extension Slot, OPS)
Output Audio Analogue     3,5mm jack
Output Control     LAN 100Mbit
Remote Control     LAN with SNMP; Remote Control IR (internal/external (optional) sensor); RS-232C (9-pin D-sub) Input

OPS OPTION SLOT
Slot Technology     Open pluggable specification (NEC / Intel OPS standard)
Inrush Current [A]     max. 10
Power Consumption [W]     max. 61
Voltage / Current [V/A]     16/4

INTERFACE EXTENSION SLOT
Slot Technology     analogue and digital interface extension (NEC standard)
SENSORS
Ambient Light Sensor     Integrated, triggered actions programmable
Human Sensor     Optional, external, 4-5m range, triggered actions programmable
Temperature Sensor     Integrated, 3 sensors, triggered actions programmable

NFC Sensor     Integrated, 2cm range, free NEC Android App required

ELECTRICAL
Power Consumption [W]     99 Eco (shipment setting), 320
Power Savings Mode [W]     < 0.5 (ECO Standby); < 1
Power Management     VESA DPMS

ENVIRONMENTAL CONDITIONS
Operating Temperature [°C]     +0 to +40
Operating Humidity [%]     20 to 80

MECHANICAL
Dimensions (W x H x D) [mm]     Without stand: 1,836.2 x 1,061.3 x 86.9
Weight [kg]     Without stand: 61.5
Bezel Width [mm]     29.7 (left and right); 29.7 (top and bottom)

VESA Mounting [mm]     4 holes; 400 x 400 (FDMI); M8

ADDITIONAL FEATURES
Special Characteristics     Auto ID assignment; Auto tiling function; Automatic Alarm E-Mails; HTTP Server; Image flip; NaViSet Administrator 2; Point Zoom Function; Programmable 10-bit LUT with 3 memory banks; Sticky Note Function in OSD; User readable log function
Colour Versions     Black Front Bezel, Black Back Cabinet
Safety and Ergonomics     C-tick; CE; FCC Class B; PSB; RoHS; TÜV GS; UL/C-UL or CSA; VCCI
Audio     Integrated Speakers (10 W + 10 W); Optional Speakers (15 W + 15 W)
Shipping Content     CD-ROM (User Guides/Manuals); Display; DVI-D cable; Power Cable; Remote Control
Warranty     3 years warranty incl. backlight; additional services available; optional 4. + 5. year warranty extension
Operating Hours     24/7

AVAILABLE OPTIONS
Accessories     Feet (ST-801); Speaker (SP-80 SM); Speaker (SP-RM1); Trolley (PDMHM-L); Wall mount (PDW T XL L+P)
Interface Extension     SB3-AB1 analogue: Audio; Component; Composite; S-Video
SB3-AB2 analogue: Audio; RGBHV
SB3-DB1 digital: 2 x HDMI
OPS     HD-SDI 1.5G,3G; HDBaseT receiver; Intel® Atom, Celeron and Core CPUs; WiDi receiver

GREEN FEATURES
Energy Efficiency     Ambient light sensor; Annual energy consumption: 144 kWh (based on 4 operating hours per day); Carbon savings meter; ECOMode; Energy efficiency class: A++; Human Sensor
Ecological Materials     Manuals on CD; Optional feet
