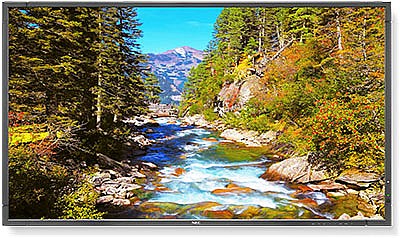

מוניטור 80" LED מבית NEC דגם E805

Display
Panel Technology     UV²A
Viewable Image Size     80"
Native Resolution     1920 x 1080
Pixel Pitch     0.92mm
Backlight Type     LED Edge-lit
Brightness (typical)     280cd/m2
Brightness (maximum)     350cd/m2
Contrast Ratio (typical)     5000:1
Viewing Angle     176° Vert., 176° Hor. (88U/88D/88L/88R) @ CR>10
Response Time(Gray to Gray)     4ms
Refresh Rate     60Hz
Aspect Ratio     16:9
Active Screen Area     69.7 x 39.2 in. / 1771.2 x 996.3.mm
Orientation     Landscape
Displayable Colors     More than 1 billion

Synchronization Range
Horizontal (Analog/Digital)     15.625 / 15.734 / 31.5-91.1 kHz
Vertical     50-85 Hz

Input Signal
Video     Analog RGB 0.7 Vp-p/75 Ohms Digital TMDS / DisplayPort
Sync      Separate sync: TTL Level (Positive/Negative)
Composite sync: TTL Level (Positive/Negative)
Composite sync on green: (0.3Vp-p negative 0.7Vp-p positive)

Connectivity
PC Signal Compatibility     Yes
Macintosh Compatibility     Yes
Input Terminals
Digital     DisplayPort, HDMI (2), DVI
Analog     VGA 15-pin D-sub
Audio     Audio Mini-Jack x 2
External Control     Ethernet (RJ45), RS-232C

Output Terminals
Audio     Audio Mini-Jack, External Speaker Jack (2)

Power Consumption (typical)
On     235W
ECO Mode Standby     <2.5W


Physical Specifications

Bezel Width (Left/Right, Top/Bottom)     1.2/1.2, 1.2/1.2 in. / 29.7/29.7, 29.7/29.7mm
Dimensions (WxHxD)
Net (with stand)     72.3 x 43.2 x 23.9 in. / 1836.2 x 1098.5 x 606 mm
Net (without stand)     72.3 x 41.8 x 3.4 in. / 1836.2 x 1061.3 x 86.9 mm
Shipping     81.2 x 54.8 x 14.2 in. / 2063 x 1391.0 x 360 mm

Weight
Net (with stand)     145.4lbs / 66.1 kg
Net (without stand)     135.3lbs / 61.5 kg
Shipping     173.8lbs / 79 kg

VESA Hole Configuration Specifications
400 x 400mm

Environmental Conditions
Operating Temperature     32-104°F / 0-40°C
Operating Humidity     20-80%
Operating Altitude     9843 ft. / 3000m
Storage Temperature     -4-140°F / -20-60°C
Storage Humidity     10-90%
Storage Altitude     40,000 ft. / 12,192m

Additional Features
Integrated Temperature Sensors
Thermodynamic Cooling Fans
Ethernet control and communication
RS-232Control and communication
AMX Beacon Compatible, Crestron Connected Compatible
Full 24/7 Scheduler
OPS expansion slot
Custom Input Detect Options

Auto Power On Integrated 10W Speakers Full Steel Chassis Plug and Play DDC2B Full Scheduler Function

Ships With
Power cord
1.8m DVI-D cable
Wireless remote control
Batteries
CD-ROM (user manual)
Option board slot cover
Screws
Thumbscrews

Accessories
Optional
NEC
Table Top Stand (ST-801)
Optional Side-Mounted 15W Speakers (SP-TF1)
Optional Rear-Mounted 15W Speakers (SP-RM1)
Optional Tilt Wall mount (WMK-6598)
OPS HDBaseT Receiver Module (SB-07BC)
OPS HD-SDI Module (SB-01HC)
OPS 3G-SDI Module (SB-04HC) OPS Digital Tuner Module (SB-03TM)
Any NEC OPS PC Option
