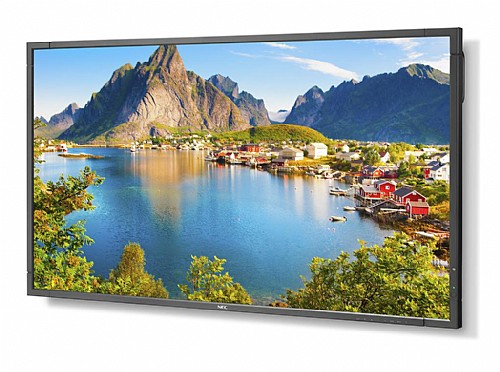

מוניטור 75" LED מבית NEC דגם E705

Display
Panel Technology     UV²A
Viewable Image Size     70"
Native Resolution     1920 x 1080
Pixel Pitch     0.8mm
Backlight Type     LED Edge-lit
Brightness (typical)     360cd/m2
Brightness (maximum)     450cd/m2
Contrast Ratio (typical)     4000:1
Viewing Angle     176° Vert., 176° Hor. (88U/88D/88L/88R) @ CR>10
Response Time(Gray to Gray)     8ms
Refresh Rate     60Hz
Aspect Ratio     16:9
Active Screen Area     60.6 x 34.1in. / 1538.9 x 865.6mm
Orientation     Landscape
Displayable Colors     More than 16.7 million

Synchronization Range
Horizontal (Analog/Digital)     15.625 / 15.734 / 31.5-91.1 kHz
Vertical     50-85 Hz

Input Signal
Video     Analog RGB 0.7 Vp-p/75 Ohms Digital TMDS / DisplayPort
Sync      Separate sync: TTL Level (Positive/Negative)
Composite sync: TTL Level (Positive/Negative)
Composite sync on green: (0.3Vp-p negative 0.7Vp-p positive)

Connectivity
PC Signal Compatibility     Yes
Macintosh Compatibility     Yes
Input Terminals
Digital     DisplayPort, HDMI (2), DVI
Analog     VGA 15-pin D-sub
Audio     Audio Mini-Jack x 2
External Control     Ethernet (RJ45), RS-232C

Output Terminals
Audio     Audio Mini-Jack, External Speaker Jack (2)

Power Consumption (typical)
On     150W
ECO Mode Standby     <2.5W

Physical Specifications
Bezel Width (Left/Right, Top/Bottom)     0.9/0.9, 0.9/0.9 in. / 23.0/23.0, 23.0/23.0 mm
Dimensions (WxHxD)
Net (with stand)     62.5 x 37.7 x 23.9 in. / 1587.0 x 956.8 x 606 mm
Net (without stand)     62.5 x 36.2 x 3.4 in. / 1587.0 x 919.6 x 86.9 mm
Shipping     68.4 x 45.4 x 12.5 in. / 1738 x 1153 x 318 mm

Weight
Net (with stand)     113.5lbs / 51.6 kg
Net (without stand)     103.4lbs / 47.0 kg
Shipping     134.2lbs / 61 kg

VESA Hole Configuration Specifications
400 x 400mm

Environmental Conditions
Operating Temperature     41-104°F / 5-40°C
Operating Humidity     20-80%
Operating Altitude     9843 ft. / 3000m
Storage Temperature     32-104°F / 0-40°C
Storage Humidity     10-90%
Storage Altitude     40,000 ft. / 12,192m

Additional Features
Integrated Temperature Sensors
Thermodynamic Cooling Fans
Ethernet control and communication
RS-232Control and communication
AMX Beacon Compatible, Crestron Connected Compatible
Full 24/7 Scheduler
OPS expansion slot
Custom Input Detect Options

Auto Power On Integrated 10W Speakers Full Steel Chassis Plug and Play DDC2B Full Scheduler Function

Ships With
Power cord
1.8m DVI-D cable
Wireless remote control
Batteries
CD-ROM (user manual)
Option board slot cover
Screws
Thumbscrews

Accessories
Optional
NEC
Table Top Stand (ST-801)
Optional Side-Mounted 15W Speakers (SP-TF1)
Optional Rear-Mounted 15W Speakers (SP-RM1)
Optional Tilt Wall mount (WMK-6598)
OPS HDBaseT Receiver Module (SB-07BC)
OPS HD-SDI Module (SB-01HC)
OPS 3G-SDI Module (SB-04HC) OPS Digital Tuner Module (SB-03TM)
Any NEC OPS PC Option
