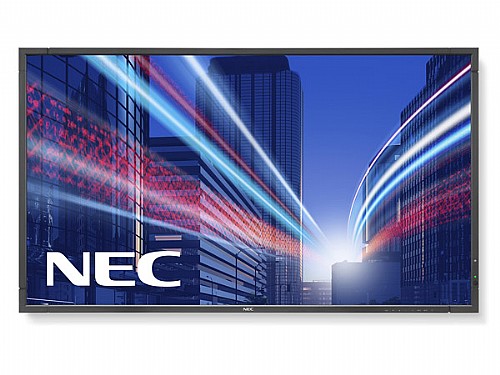

מוניטור 70" LED מבית NEC דגם P703

Display
Panel Technology     SPVA (P-DID)
Viewable Image Size     70"
Native Resolution     1920 x 1080
Pixel Pitch     0.8mm
Backlight Type     LED Edge-lit
Pixels Per Inch     31@ native resolution
Brightness (typical)     560cd/m2
Brightness (maximum)     700cd/m2
Contrast Ratio (typical)     4000:1
Viewing Angle     178° Vert., 178° Hor. (89U/89D/89L/89R) @ CR>10
Response Time(Gray to Gray)     8ms
Refresh Rate     60Hz
Aspect Ratio     16:9
Orientation     Landscape/Portrait
Displayable Colors     More than 16.7 million

Synchronization Range
Horizontal (Analog/Digital)     31.5-91.1 kHz
Vertical     50-85 Hz

Input Signal
Video     Analog RGB 0.7 Vp-p/75 Ohms
Sync      Separate sync: TTL Level (Positive/Negative)
Composite sync: TTL Level (Positive/Negative)
Composite sync on green: (0.3Vp-p negative 0.7Vp-p positive)

Connectivity
PC Signal Compatibility     Yes
Macintosh Compatibility     Yes
Input Terminals
Digital     DisplayPort, HDMI, DVI-D
Analog     VGA 15-pin D-sub
Audio     Audio Mini-Jack, DisplayPort Audio, HDMI Audio
External Control     RS-232C, LAN, DDC/CI

Output Terminals
Audio     Audio Mini-Jack, External Speaker Jack (2)
Digital     DisplayPort
External Control     RS-232C

Power Consumption (typical)
On     150W
ECO Mode Standby     <0.5W

Physical Specifications
Bezel Width (Left/Right, Top/Bottom)     0.9in./0.9in., 0.9in./0.9in. ; 23.0mm/23.0mm, 23.0mm/23.0mm
Dimensions (WxHxD)
Net (with stand)     62.5 x 37.7 x 23.9 in. / 1587 x 956.75 x 600mm
Net (without stand)     62.5 x 36.2 x 3.4 in. / 1587 x 919.6 x 86.9mm
Shipping     73.2 x 46.5 x 15 in. / 1860 x 1180 x 380mm

Weight
Net (with stand)     110 lbs. / 50 kg
Net (without stand)     105.1 lbs. / 47.8 kg
Shipping     143 lbs. / 65 kg

VESA Hole Configuration Specifications
400 x 400mm

Environmental Conditions
Operating Temperature     32-104°F / 0-40°C
Operating Humidity     20-80%
Operating Altitude     9843 ft. / 3000m
Storage Temperature     -4-149°F / -20-65°C
Storage Humidity     10-90%
Storage Altitude     40,000 ft. / 12,192m

Additional Features
Advanced thermal capabilities
Ethernet Control and Communication
RS-232 Control and Communication
Landscape/portrait capable
Carbon footprint meter
Plug and Play (DDC/CI, DDC2B)
Scheduler (w/ real-time clock)
Screen saver function
Ambient light sensor (AmbiBright)
Screen saver function
Optional human sensor
Intelligent Wireless Data (Near Field Communications)
Second expansion slot
Expanded daisy chain (DP 1.2)
6-axis color adjustment
Metal rear cabinet
POP
Side-by-Side
Handles
Variable picture modes
Advanced video settings (Noise Reduction, Adaptive Contrast)
Input labeling
Backlight adjust
Aspect ratio control
Built-in speakers
LED edge-lit backlighting
10-bit color over HDMI
OPS/Expansion slot

Ships With
Power cord
1.8m DP 1.2 cable
Digital media player (OPS-DRD)
Wireless remote control
Batteries
CD-ROM (user manual)
Option board slot cover
Screws
Thumbscrews
