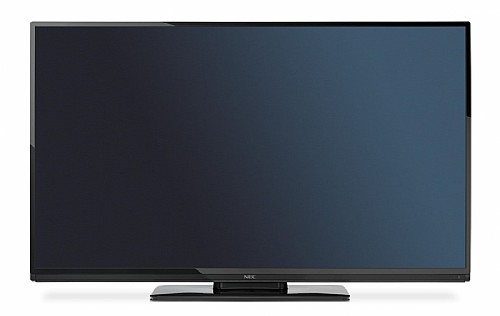

מוניטור 65" LED מבית NEC דגם E654

Display
Panel Technology     A-MVA
Viewable Image Size     65"
Native Resolution     1920 x 1080
Backlight Type     LED Direct-lit
Brightness (typical)     350cd/m2
Contrast Ratio (typical)     4000:1
Viewing Angle     178° Vert., 178° Hor. (89U/89D/89L/89R) @ CR>10
Response Time(Gray to Gray)     6.5ms
Refresh Rate     120Hz
Aspect Ratio     16:9
Active Screen Area     56.3 x 31.7 in. / 1430.9 x 806mm
Orientation     Landscape
Displayable Colors     More than 16.7 million

Synchronization Range
Horizontal (Analog/Digital)     31-83 kHz
Vertical     56-75 Hz

Input Signal
Video     Analog RGB 0.7 Vp-p/75 Ohms
Sync      Separate sync: TTL Level (Positive/Negative)
Composite sync: TTL Level (Positive/Negative)
Composite sync on green: (0.3Vp-p negative 0.7Vp-p positive)

Connectivity
PC Signal Compatibility     Yes
Macintosh Compatibility     Yes
Input Terminals
Digital     HDMI (3)
Analog     VGA 15-pin D-sub, RCA (Y, Cb/Pb, Cr/Pr) Component
Audio     HDMI Audio, Stereo Mini-Jack
External Control     RS-232C

Output Terminals
Audio     SPDIF

Power Consumption (typical)
On     122W
ECO Mode Standby     <0.5W

Physical Specifications
Bezel Width (Left/Right, Top/Bottom)     0.7 in./0.7 in., 0.7 in./1.9 in. ; 18mm/18mm, 18mm/48mm
Dimensions (WxHxD)
Net (with stand)     57.7 x 36.1 x 13 in. / 1465.6 x 916.9 x 330.2mm
Net (without stand)     57.7 x 34.3 x 4 in. / 1465.6 x 871.22 x 101.6mm

Weight
Net (with stand)     79 lbs. / 35.9 kg
Net (without stand)     68 lbs. / 30.9 kg

VESA Hole Configuration Specifications
400 x 400mm (4-hole)

Environmental Conditions
Operating Temperature     32-104°F / 0-40°C
Operating Humidity     10-80%
Operating Altitude     6562 ft. / 2000m
Storage Temperature     32-104°F / 0-40°C
Storage Humidity     5-85%
Storage Altitude     40,000 ft. / 12,192m

Additional Features
Built-in NTSC/ATSC (8-VSP, Clear QAM) analog/digital tuner
Variable picture modes (Dynamic Standard/Energy Savings/Theater/Custom)
Advanced Video/Audio Settings
Sleep Timer
Built-In closed captioning
Parental Control (V-Chip Function)
Power management
USB Port

Ships With
Power cord
VGA cable (Mini 15-pin D-sub)
Wireless remote control
Batteries
CD-ROM (user manual)
Stand
Thumbscrews
RS-232 adaptor

Accessories
Optional
NEC
External Single Board Computer (TNETPC-ION)
Wall Mount Kit (WMK-3257)
Accessory pack for Wall Mount Kit (MIS513)
