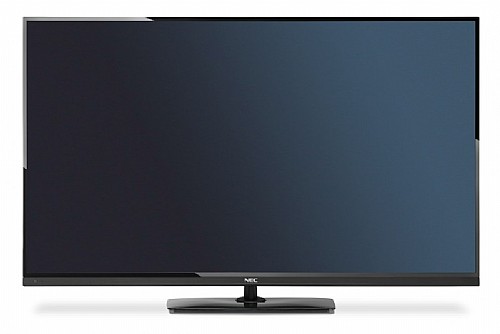

מוניטור 32" מבית NEC דגם E324

Display
Panel Technology     A-MVA
Viewable Image Size     32"
Native Resolution     1366 x 768
Backlight Type     LED Edge-lit
Brightness (typical)     350cd/m2
Contrast Ratio (typical)     3000:1
Viewing Angle     178° Vert., 178° Hor. (89U/89D/89L/89R) @ CR>10
Response Time(Gray to Gray)     6.5ms
Refresh Rate     60Hz
Aspect Ratio     16:9
Active Screen Area     27.5 x 15.4 in. / 697.7 x 392.3mm
Orientation     Landscape
Displayable Colors     More than 16.7 million

Synchronization Range
Horizontal (Analog/Digital)     31-83 kHz
Vertical     56-75 Hz

Input Signal
Video     Analog RGB 0.7 Vp-p/75 Ohms
Sync      Separate sync: TTL Level (Positive/Negative)
Composite sync: TTL Level (Positive/Negative)
Composite sync on green: (0.3Vp-p negative 0.7Vp-p positive)

Connectivity
PC Signal Compatibility     Yes
Macintosh Compatibility     Yes
Input Terminals
Digital     HDMI (3)
Analog     VGA 15-pin D-sub, RCA (Y, Cb/Pb, Cr/Pr) Component
Audio     HDMI Audio, Stereo Mini-Jack
External Control     RS-232C

Output Terminals
Audio     SPDIF

Power Consumption (typical)
On     45W
ECO Mode Standby     <0.5W

Physical Specifications
Bezel Width (Left/Right, Top/Bottom)     0.39 in./0.39 in., 0.39 in./1.3 in. ; 9.9mm/9.9mm, 9.9mm/32.4mm
Dimensions (WxHxD)
Net (with stand)     28.6 x 19.5 x 8.4 in. / 725.7 x 496.3 x 214.1mm
Net (without stand)     28.6 x 17.4 x 2.5 in. / 725.7 x 442.8 x 62.8mm
Shipping     31.5 x 20.7 x 5.3 in. / 800 x 525 x 134mm

Weight
Net (with stand)     18.5 lbs. / 8.4 kg
Net (without stand)     14.8 lbs. / 6.7 kg
Shipping     23.0 lbs. / 10.4 kg

VESA Hole Configuration Specifications
100 x 100mm (4-hole)

Environmental Conditions
Operating Temperature     32-104°F / 0-40°C
Operating Humidity     10-80%
Operating Altitude     6562 ft. / 2000m
Storage Temperature     32-104°F / 0-40°C
Storage Humidity     5-85%
Storage Altitude     40,000 ft. / 12,192m

Additional Features
Built-in NTSC/ATSC (8-VSP, Clear QAM) analog/digital tuner
Variable picture modes (Dynamic Standard/Energy Savings/Theater/Custom)
Advanced Video/Audio Settings
Sleep Timer
Built-In closed captioning
Parental Control (V-Chip Function)
Power management
USB Port

Ships With
Power cord
VGA cable (Mini 15-pin D-sub)
Wireless remote control
Batteries
CD-ROM (user manual)
Stand
Thumbscrews
RS-232 adaptor

Accessories
Optional
NEC
External Single Board Computer (TNETPC-AF-WH )
Wall Mount Kit (WMK-3257)
Accessory pack for Wall Mount Kit (MIS513)
