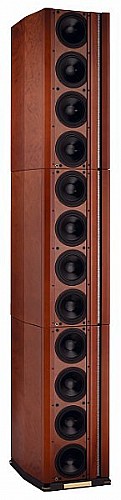

DALI MEGALINE Technical Specifications DALI MegaLine Frequency response : (± 3 dB): 35 - 22,000 Hz Crossover frequency: 1,200 Hz via external active crossover Reflex tuning: 38.5 Hz Impedance: 4.8W min./6W nominal 3 modules in series Dimensions : (H x W x D):
Technical Specifications DALI MegaLine Frequency response : (± 3 dB): 35 - 22,000 Hz Crossover frequency: 1,200 Hz via external active crossover Reflex tuning: 38.5 Hz Impedance: 4.8W min./6W nominal 3 modules in series Dimensions : (H x W x D): 2310 x 276 x 480 mm 3 modules 91x 10.8 x 18.9 in. Weight: 110 kg, per channel
DALI MegaLine AC-U Active Crossover
Frequency response : (± 0.5 dB): 5 Hz-200 kHz Filter precision : (20 Hz - 20 kHz): ± 0.25 dB Input impedance: 20 k Output impedance: 50 Connections: phono Max. cable length to power amplifier: 10 m Dimensions : (H x W x D): 48 x 440 x 305 mm Weight: 4.8 kg (ex. power supplies), 6.1 kg (w. power supplies Power consumption: 13 Watts per channel
